Productbeschrijving

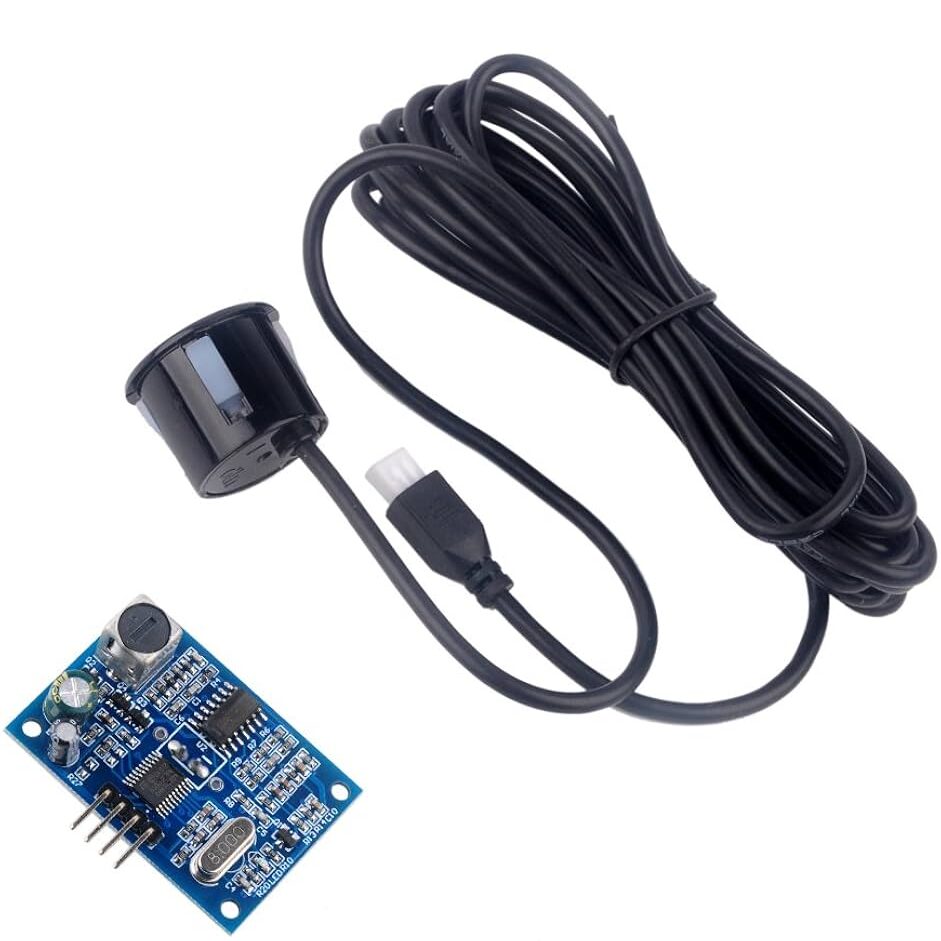

De JSN-SR04T is een waterbestendige ultrasone afstandssensor met losse transducer, geschikt voor buitengebruik en vloeistofniveaumeting. De sensor meet afstand met ultrasone pulsen en werkt vergelijkbaar met de HC-SR04, maar met een waterdichte sonde. Ideaal voor tanks, regenprojecten, robotica en IoT-metingen in vochtige omgevingen.
Technische specificaties
Sensor type: waterbestendige ultrasone afstandssensor
Model: JSN-SR04T
Werkspanning: 3.0V - 5.5V DC
Werkfrequentie: 40 kHz
Meetbereik: ongeveer 20 cm tot 600 cm
Nauwkeurigheid: ongeveer ±1 cm
Interface: TRIG en ECHO digitale signalen
Meethoek: ongeveer 75 graden
Transducer: waterbestendige sonde met kabel
Let op: de sensorprint zelf moet droog blijven
Compatibiliteit: Arduino, ESP32, Raspberry Pi en microcontrollers
In de verpakking
1x JSN-SR04T Integrated Ultrasonic Distance Measuring Sensor Transducer Module Waterproof
Product description

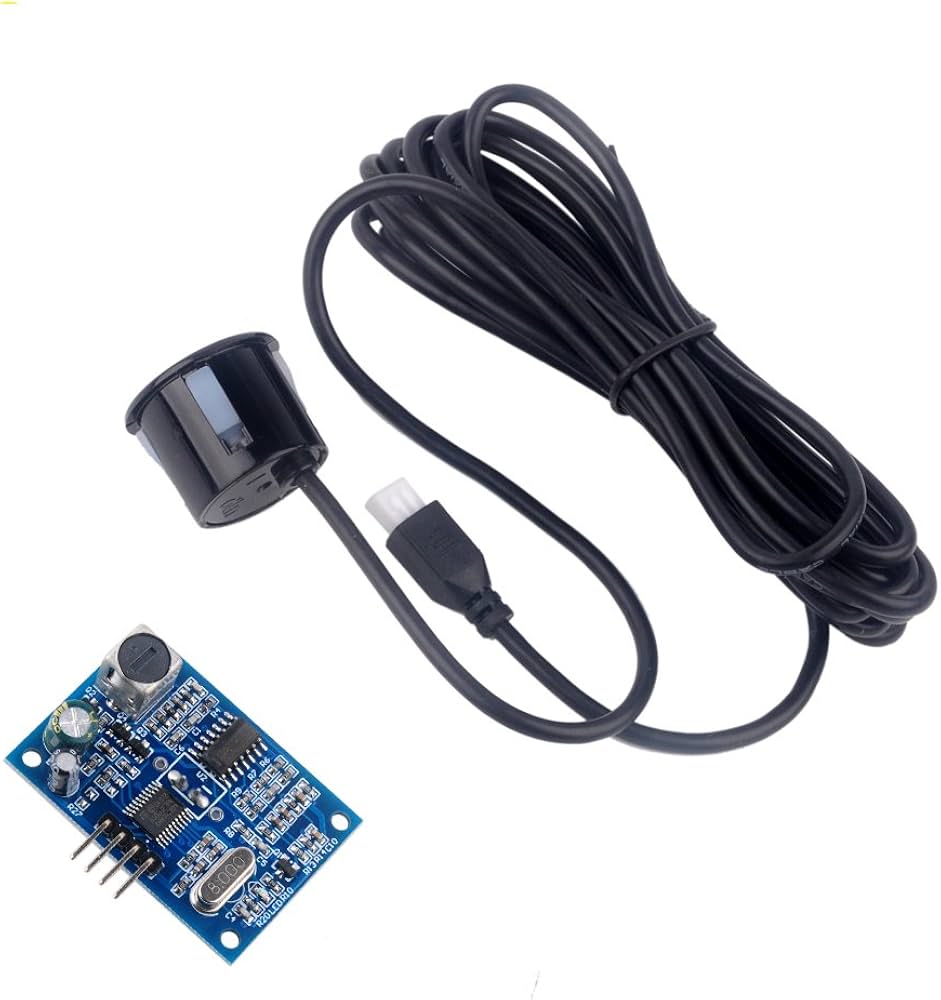

The JSN-SR04T is a waterproof ultrasonic distance sensor with a separate transducer, suitable for outdoor use and liquid level measurement. It measures distance using ultrasonic pulses and works similarly to the HC-SR04, but with a waterproof probe. It is ideal for tanks, rain projects, robotics and IoT measurements in wet environments.
Technical specifications
Sensor type: waterproof ultrasonic distance sensor
Model: JSN-SR04T
Operating voltage: 3.0V - 5.5V DC
Operating frequency: 40 kHz
Measuring range: approximately 20 cm to 600 cm
Accuracy: approximately ±1 cm
Interface: TRIG and ECHO digital signals
Measuring angle: approximately 75 degrees
Transducer: waterproof probe with cable
Note: the sensor PCB itself should be kept dry
Compatibility: Arduino, ESP32, Raspberry Pi and microcontrollers
Package includes
1x JSN-SR04T Integrated Ultrasonic Distance Measuring Sensor Transducer Module Waterproof
